A complete rebuild of a vintage Mercedes van interiorāfrom concept sketches and spatial planning to fabrication, systems integration, and final finishing.

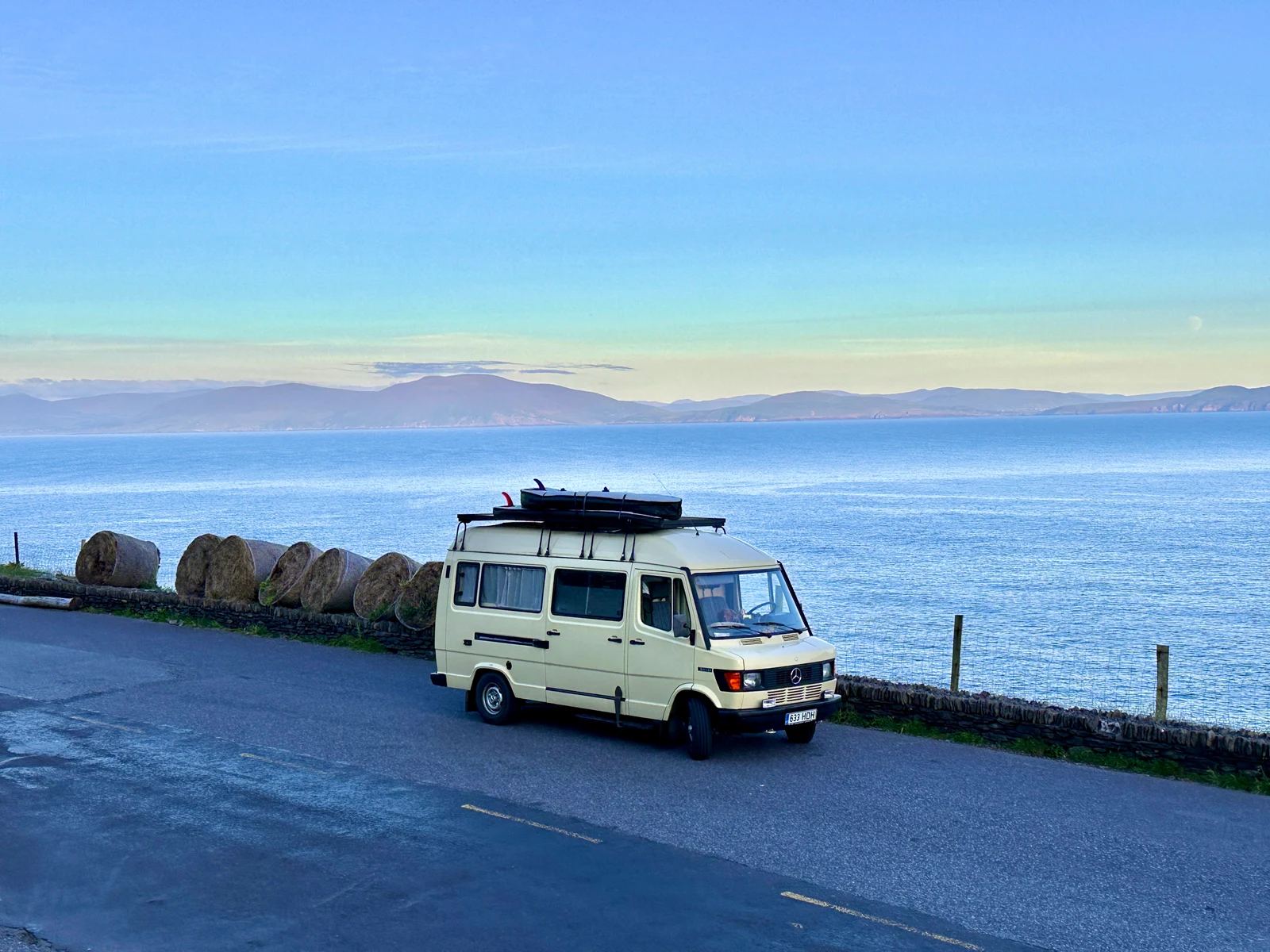

In 2019, I was lucky enough to find and buy a barely used design classic: one of the last Mercedes-Benz vans built on the T1 platform, the 310D, known for its distinctive design and legendary reliability.
Because I love spending long periods of time on the road, I quickly almost doubled its mileage with trips from my home in Berlin to Denmark, Norway, the UK, and other places around the North Sea.

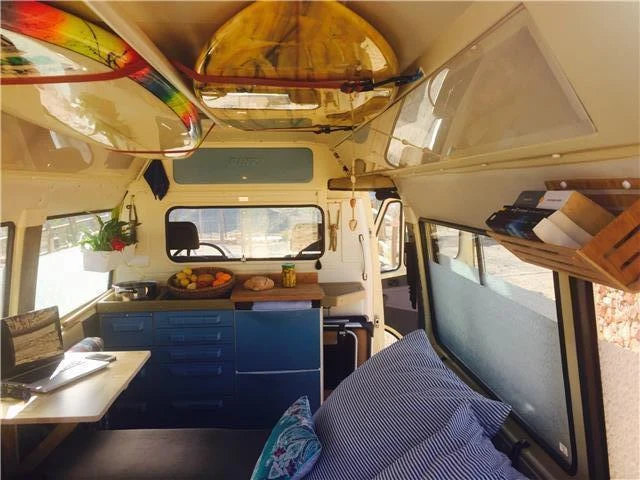

The van lived up to its reputation mechanically, but the passenger living area ā quickly assembled by the previous owner ā was not suited for longer journeys in Northern European conditions. It lacked a reliable power source, proper insulation, efficient storage, and comforts such as a refrigerator, which become essential when living on the road for extended periods in colder climates.

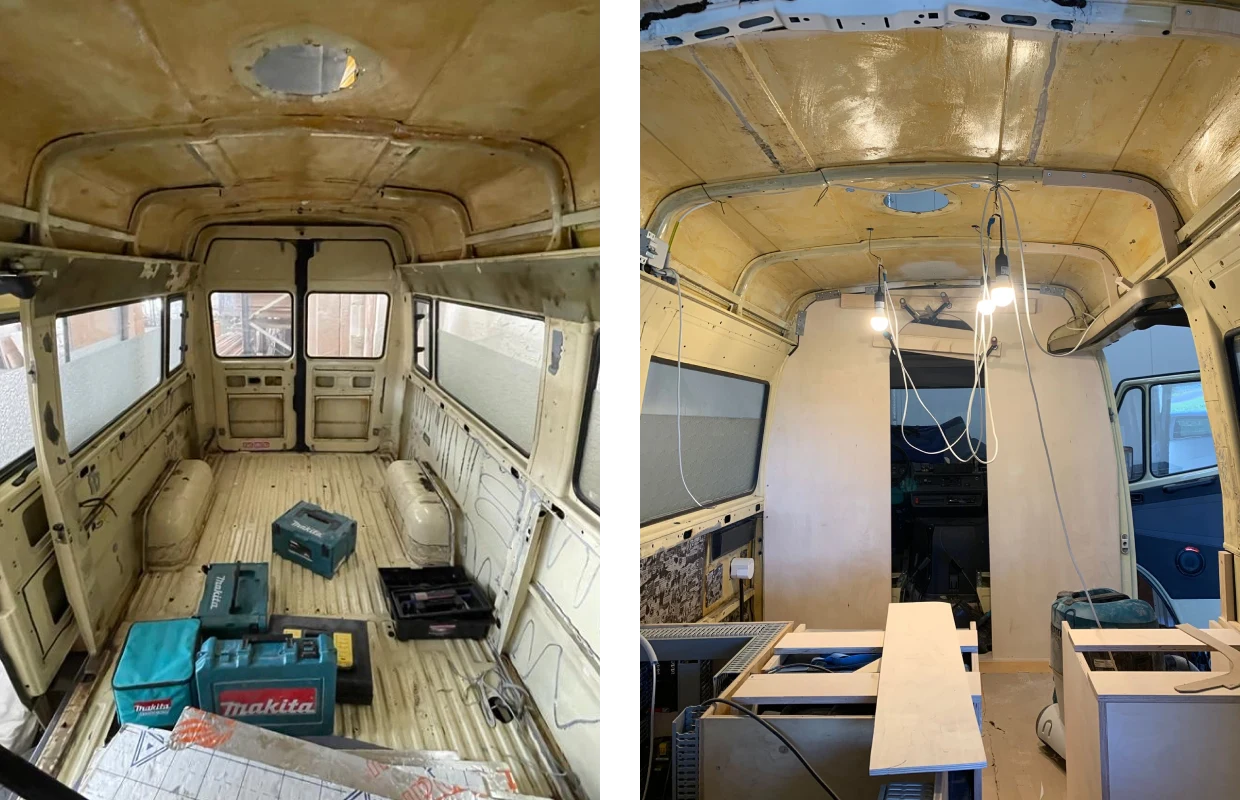

Over time, a full-scale design-and-build project began to take shape: stripping the passenger compartment back to its bare structure and rebuilding the interior from scratch under a demanding set of spatial, weight, technical, material, and environmental constraints.
The goal was to create a compact, self-sufficient living space that would allow two people to live comfortably inside the van for up to five days in a Northern European climate, without relying on external power or other resources.
1. Design Process
Before building anything, I needed to understand what ācomfortableā living inside the van actually meant. Fortunately, I had enough first-hand experience with the opposite to know where the priorities were. The key word was warmth.

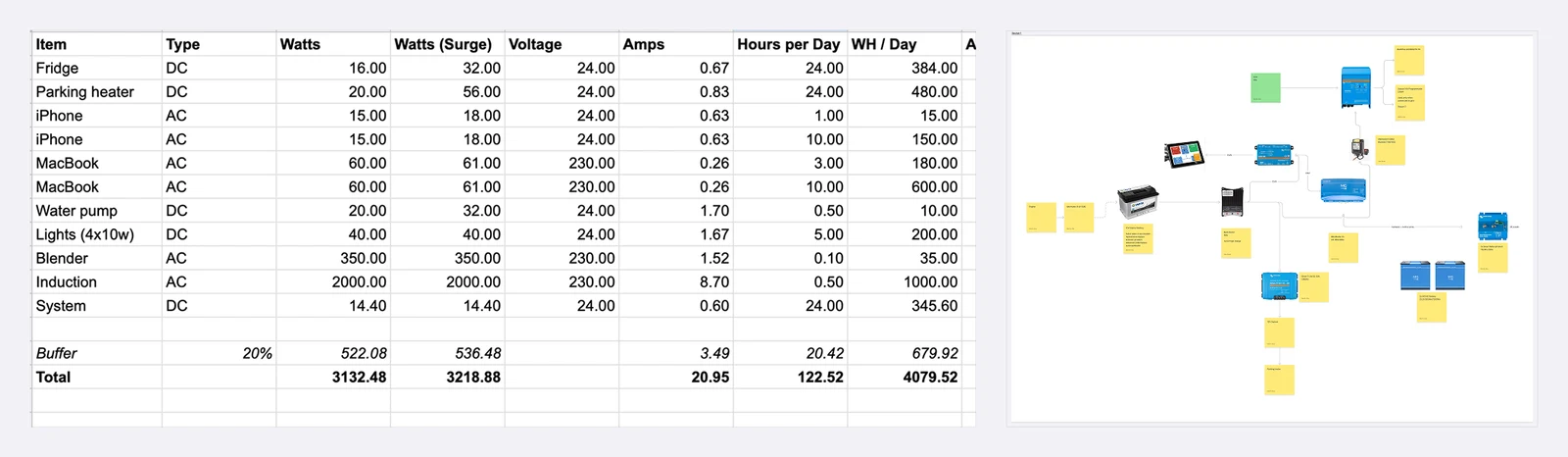

This meant proper insulation and a battery system large enough to keep the parking heater running for several days without access to external power. I made a detailed assessment of our energy needs, estimating which devices we would use, for how long, and with a generous safety margin for peace of mind.
This required learning about modern off-grid energy systems, including LiFePOā batteries, solar panels, inverters, basic electrical theory, and system diagrams.

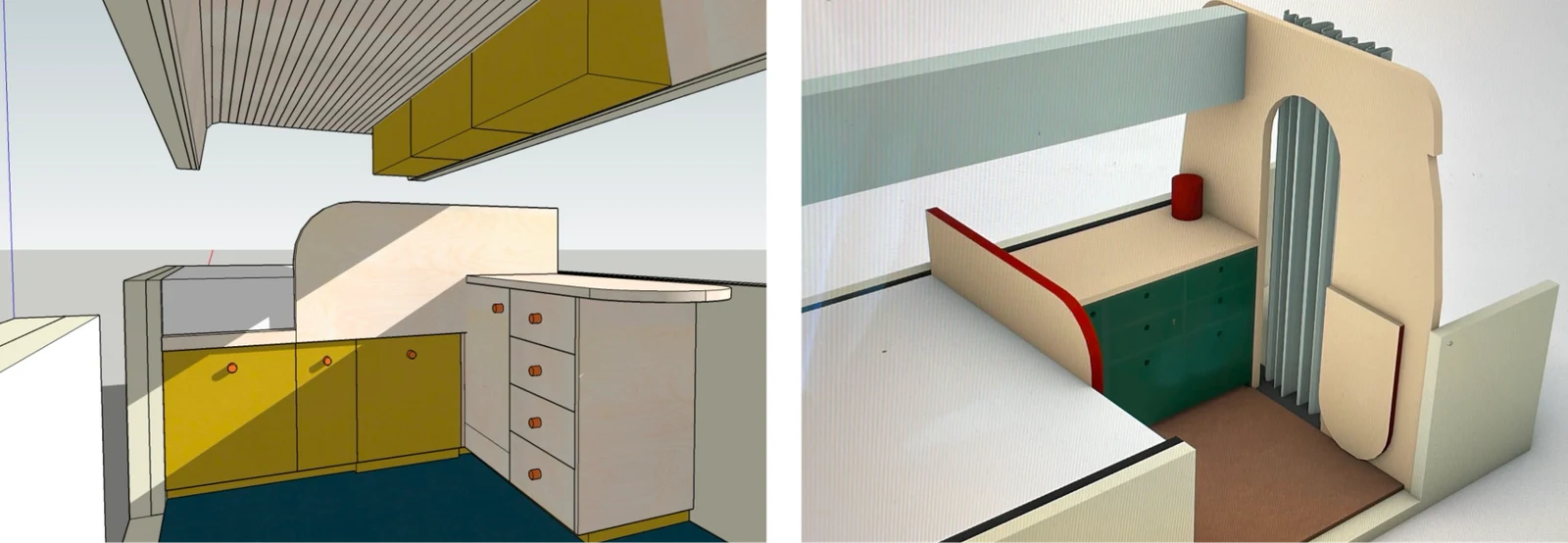

At the same time, I explored multiple layouts, storage strategies, and material directions in SketchUp. The goal was to create a modern and comfortable living environment that felt conceptually closer to a small off-grid cabin than a typical van conversion.
One of the most challenging aspects of the project was the geometry of the space itself. The van had windows on every wall, curved surfaces, limited straight reference points, and very little room for error. Every element needed to serve more than one function: seating, sleeping, storage, access to systems, or visual openness.

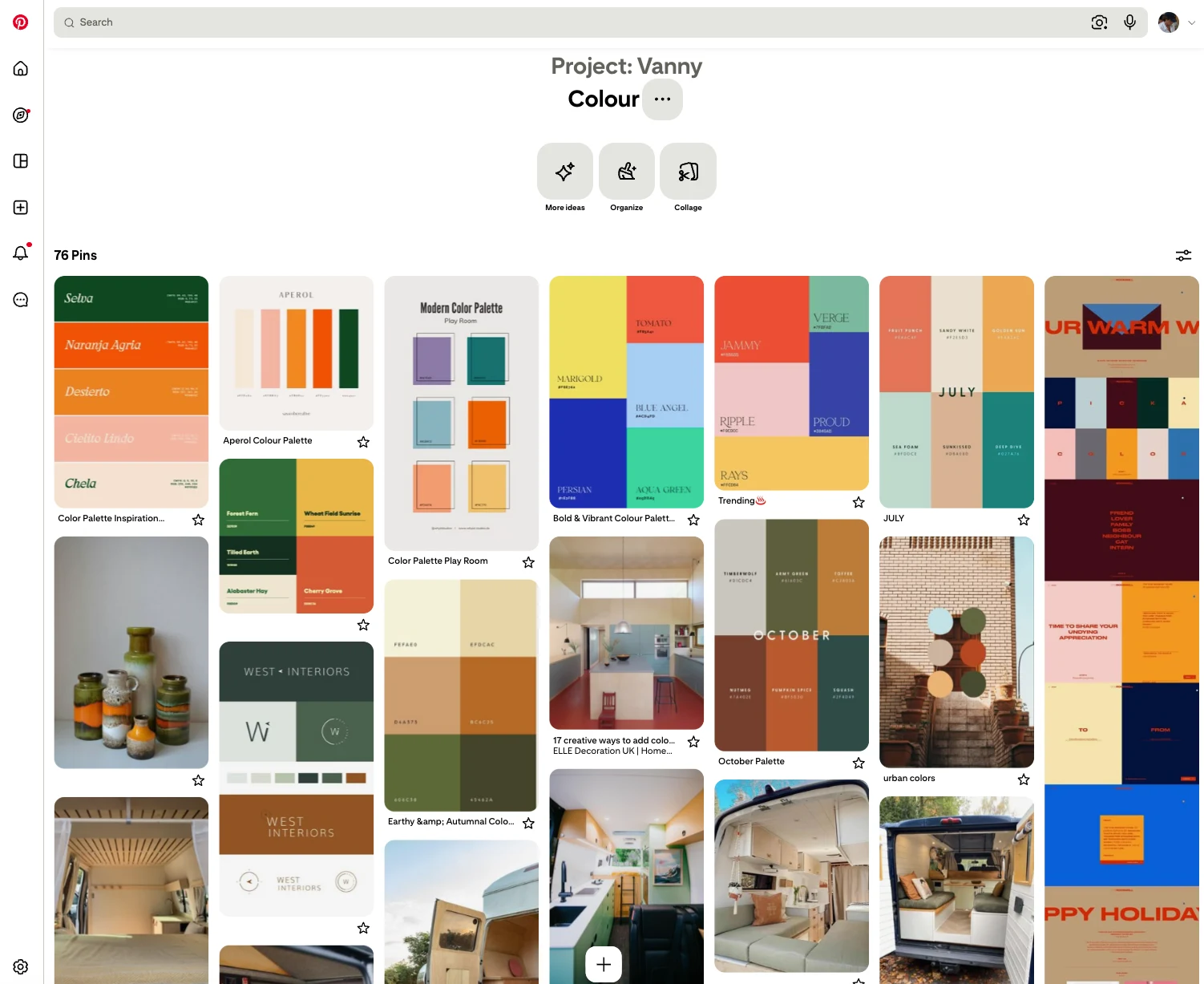

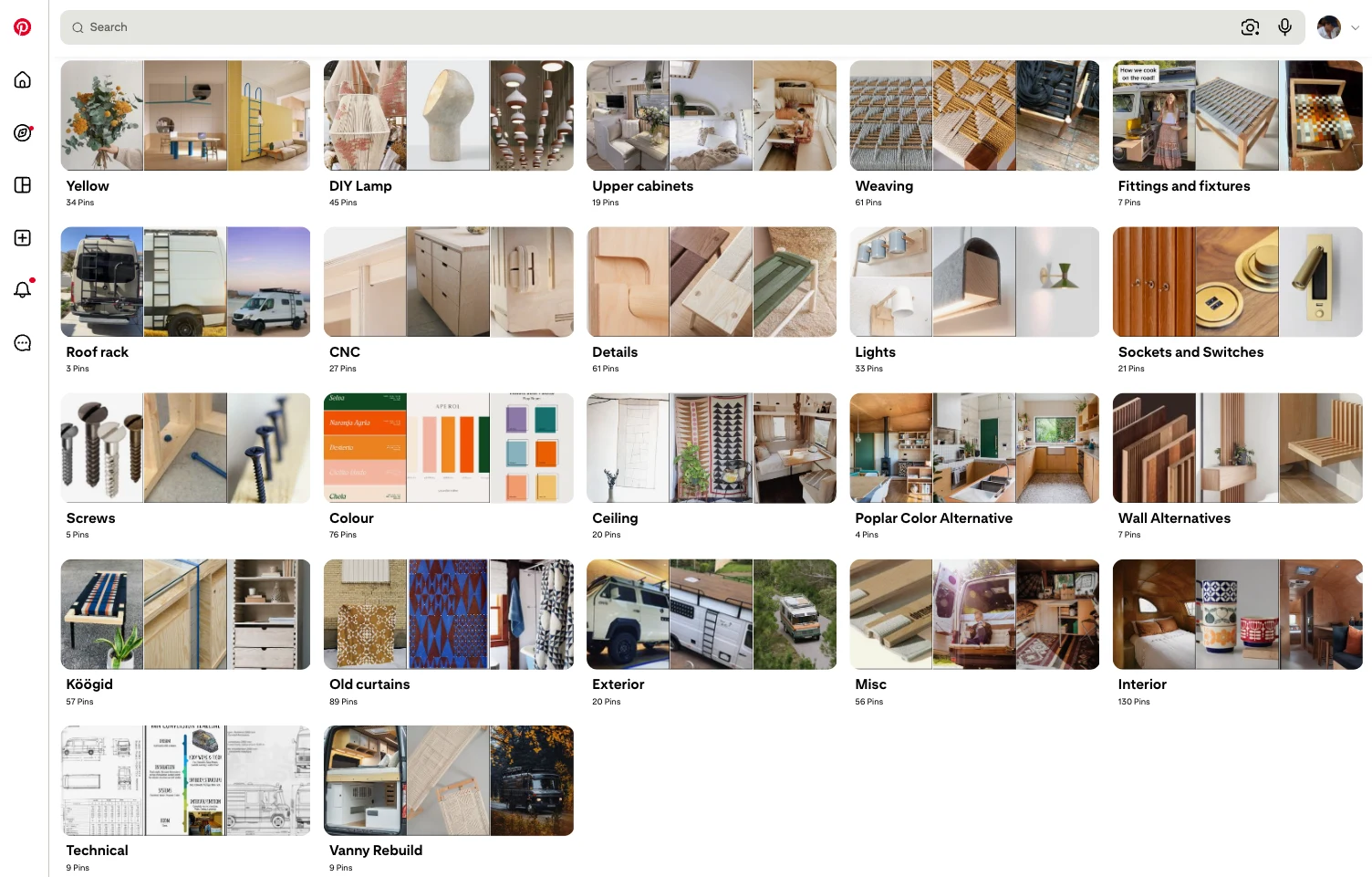

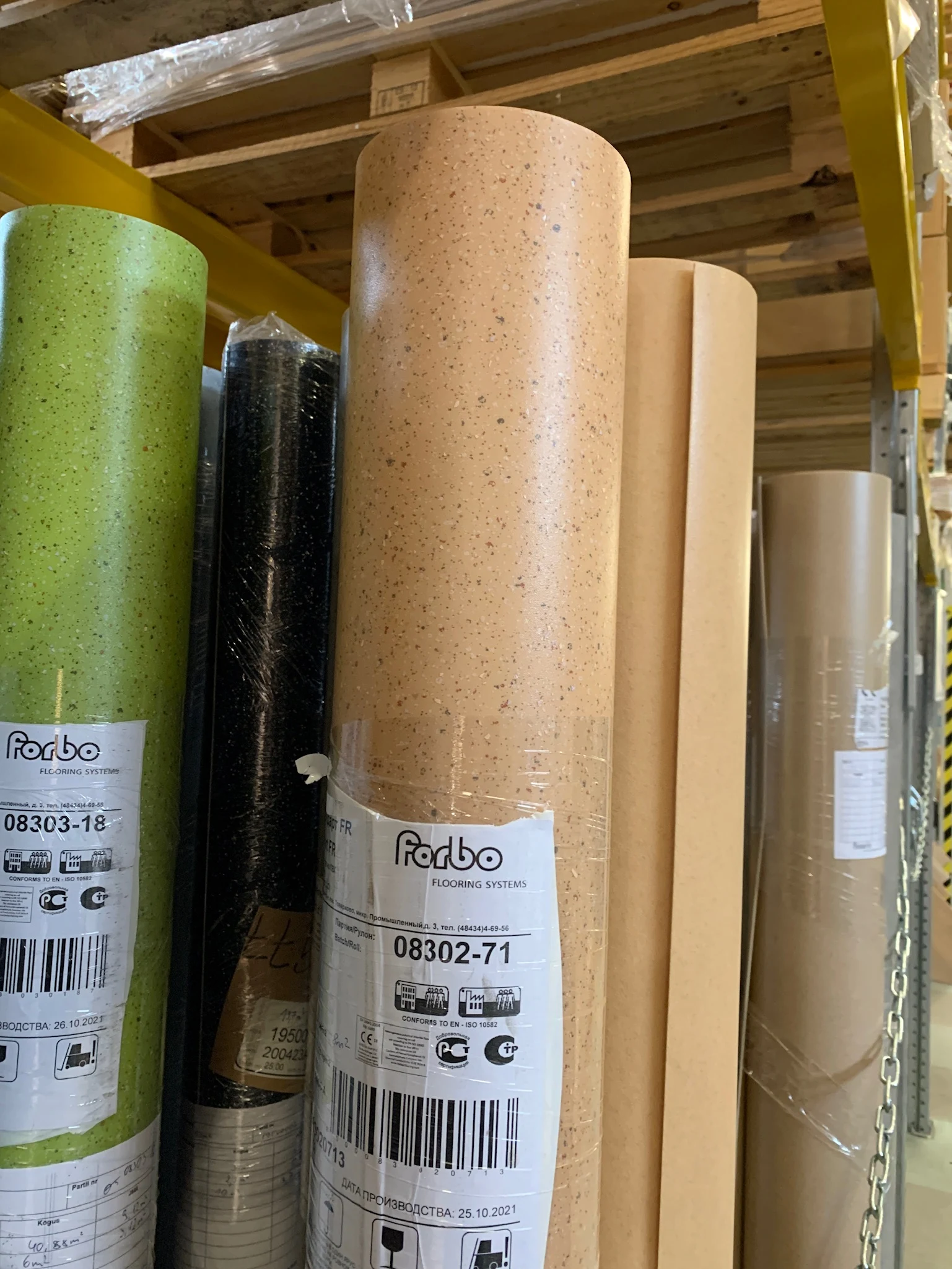

Alongside the spatial planning, I explored a wide range of finishing options and materials through Pinterest research, vendor visits, material samples, and conversations with suppliers.
The material exploration eventually narrowed down to plywood, mainly because of its strength-to-weight ratio, dimensional stability, and suitability for an environment with significant changes in temperature and humidity.
I considered three main species, chosen partly for their availability and connection to the North Sea region: poplar, pine, and birch. Poplar was very light and had a pleasant warm tone, but I found it too soft for the intended use. Pine had similar limitations. Birch plywood eventually became the main material because, when whitewashed, it offered a clean modern appearance, crisp exposed edges, and much better durability.
I later used pine for the drawers because of its expressive grain, which I wanted to tint with a deep forest-green finish. For the ceiling, I chose thermo-treated ash boards to reduce movement and improve stability.

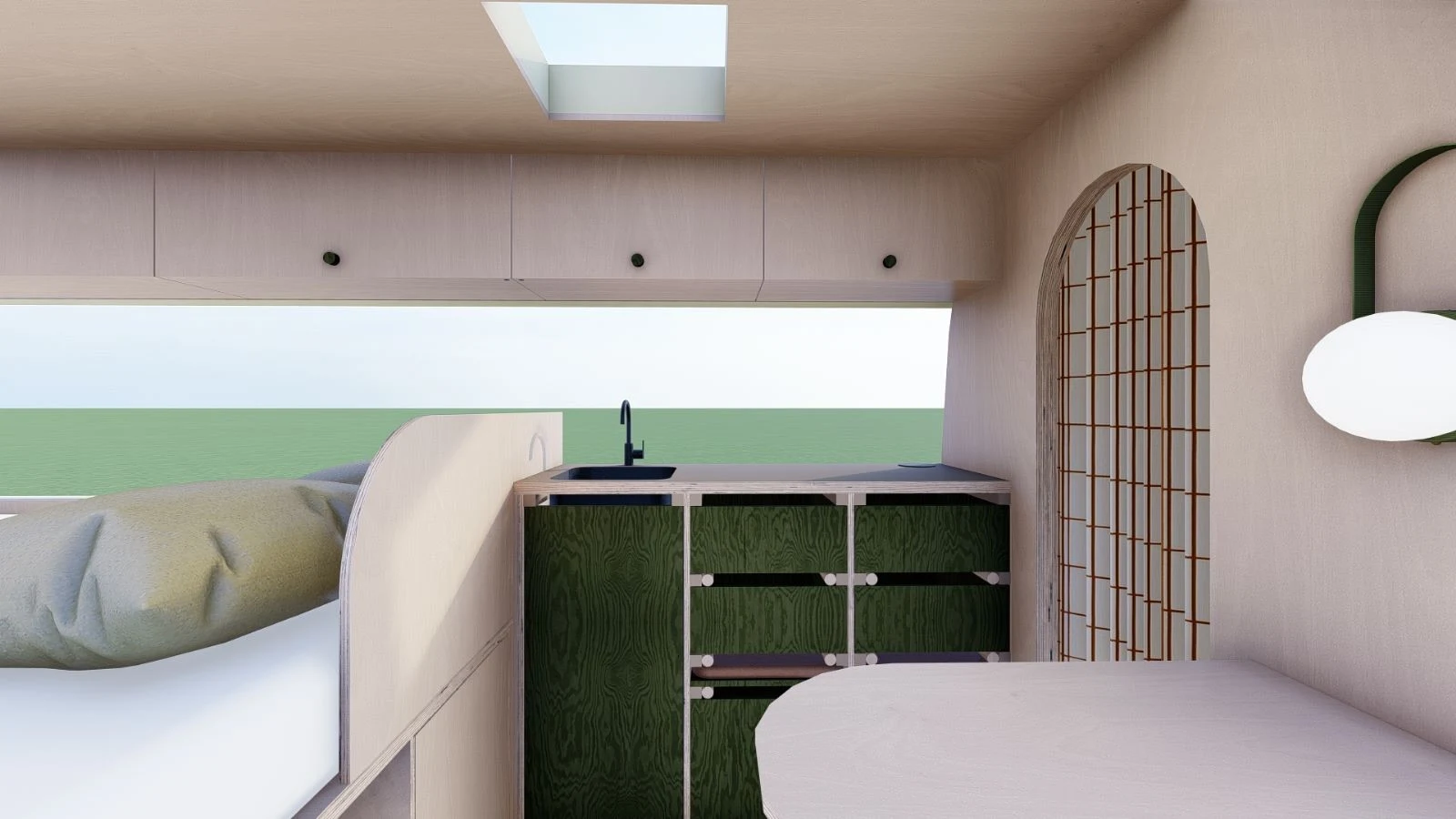

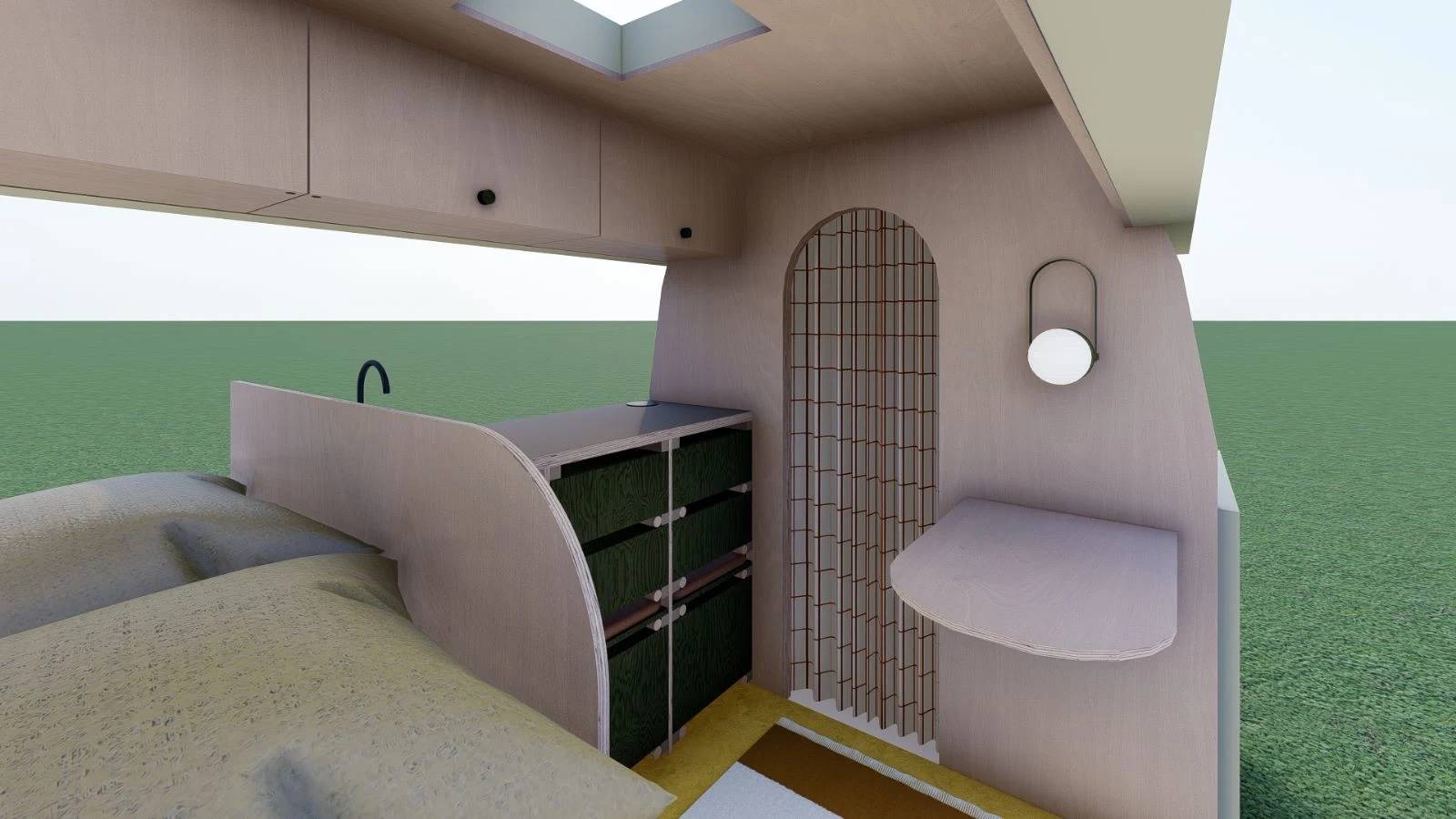

With the main design and material decisions in place, I worked with an architect friend to explore the final details through high-fidelity visualizations. These mockups helped define the atmosphere, proportions, colors, and finishing strategy before I committed to purchasing materials and beginning the build.
2. Construction

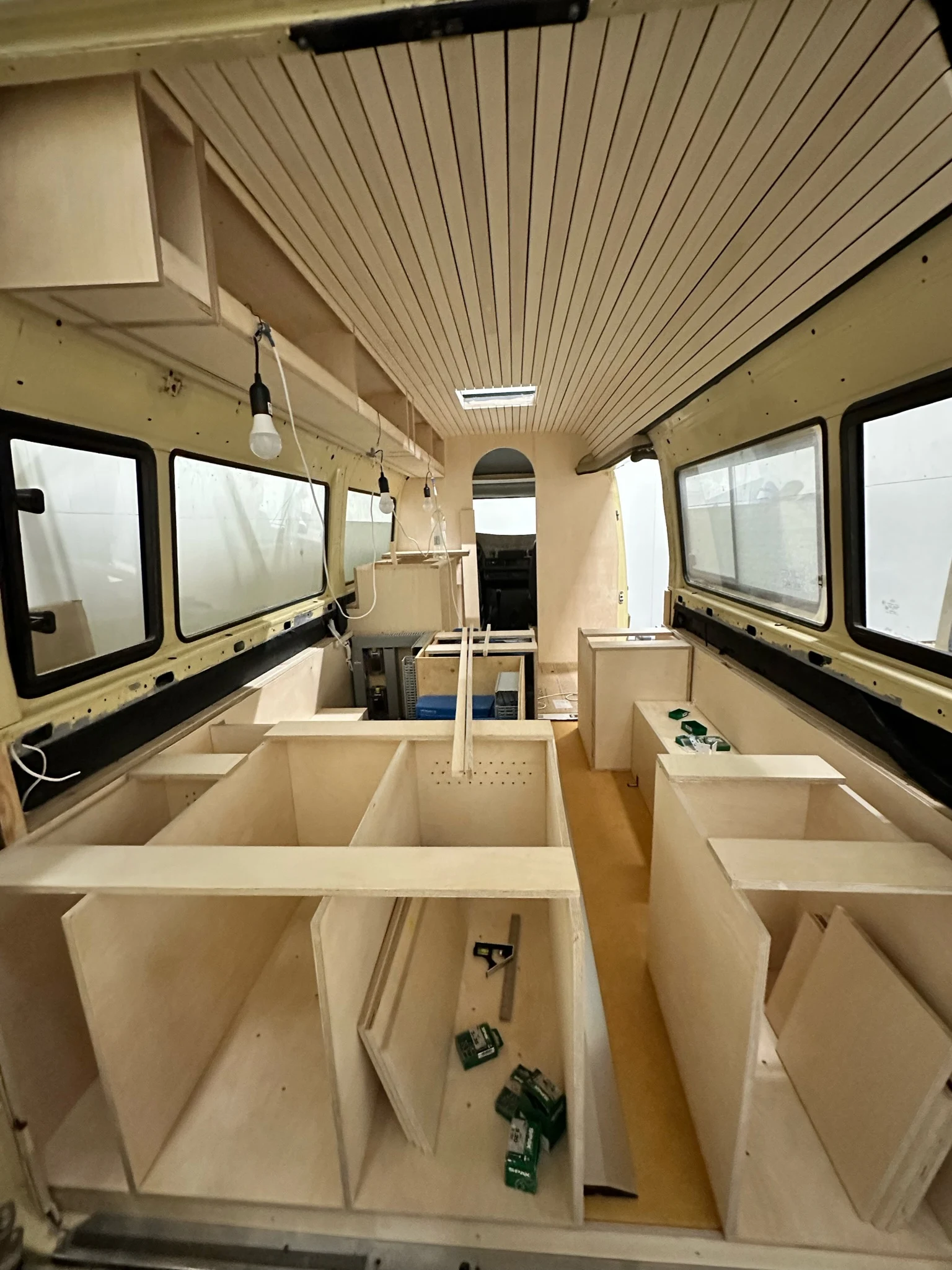

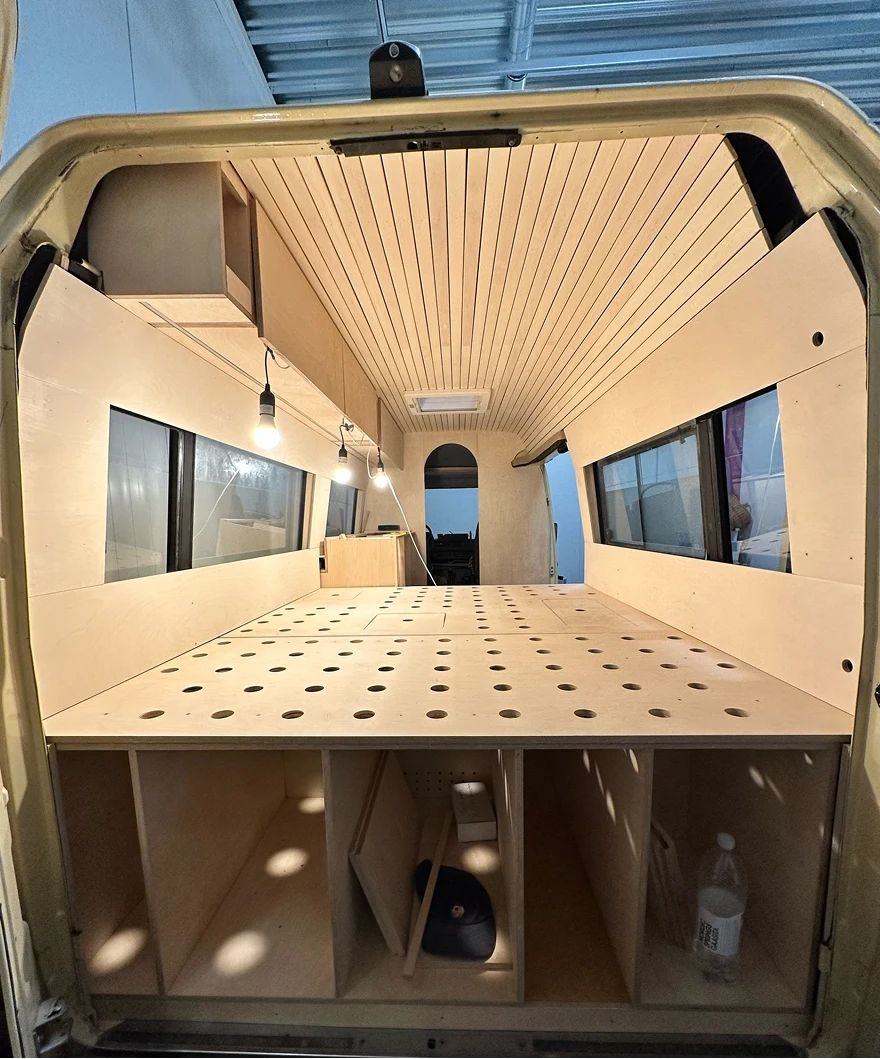

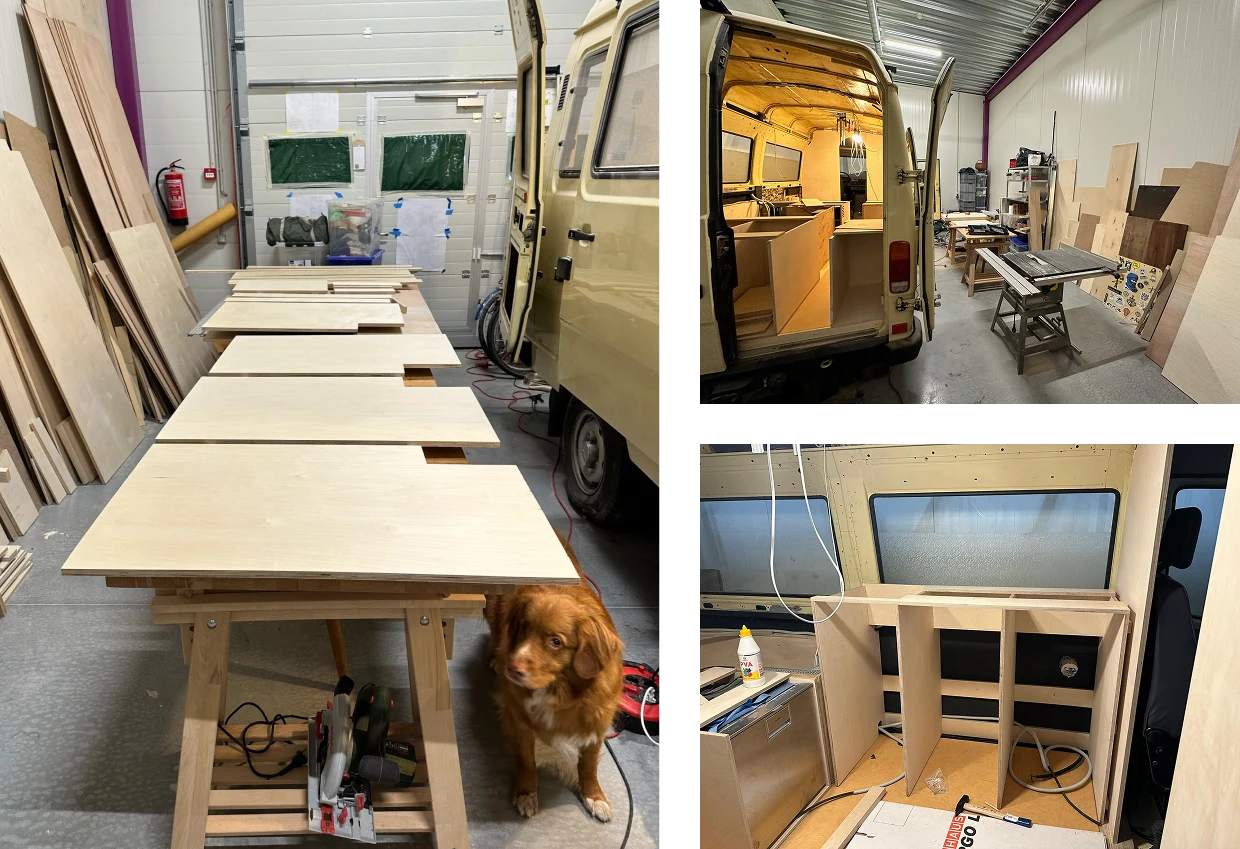

The construction phase took approximately six months and involved rebuilding the interior from the ground up. It required a broad range of practical skills, tools, and construction decisions, many of which I was learning and applying for the first time in a real project.

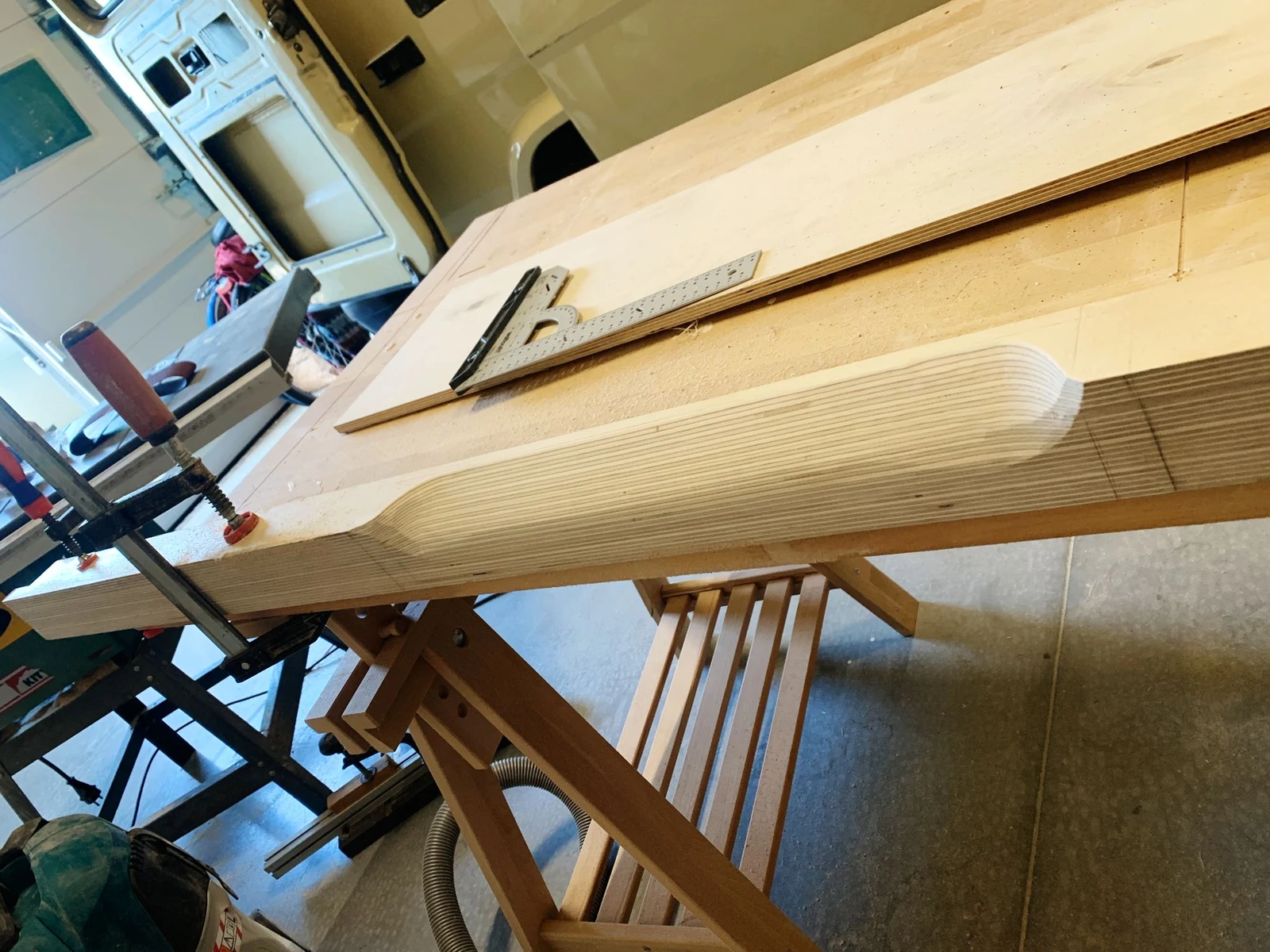

- Measuring, cutting and fitting. I worked with a table saw, jigsaw, and circular saw, using guides and fences to achieve straight and repeatable cuts. Because the van interior had very few square or flat surfaces, much of the work involved careful measuring, test-fitting, adjustment, and sequencing. I also had to account for potential wood movement, especially in areas exposed to changes in temperature and humidity. Where appropriate, I used shadow gaps and small tolerances to allow the interior to move naturally without compromising the overall appearance.
- Routing and precision cutouts. I used a handheld router to create precise grooves and openings for electrical components, appliances, and fitted details. This was one of the more demanding tools to learn because of its speed, power, and potential for removing material very quickly.

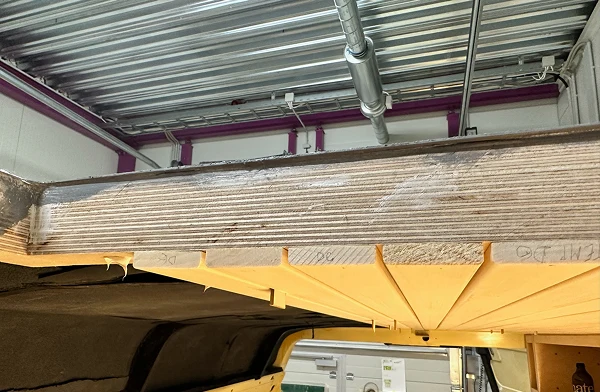

- Assembly and structural approach. For the robustness of the construction, I mainly relied on the overall structural design of the interior and a combination of dowels, PVA glue, and nails for the joints. In areas where the structure required additional reinforcement, I used screws and L-brackets. My goal was to keep the construction visually clean, with as little visible hardware as possible. Looking back after three years of use, I can now see that some of the joints are beginning to loosen slightly. This has been a valuable lesson in long-term durability. In future plywood-based construction, I would use more robust joinery methods such as dados, rabbets, locking joints, and better mechanical fastening strategies to improve rigidity and reduce movement in heavily used structural panels.

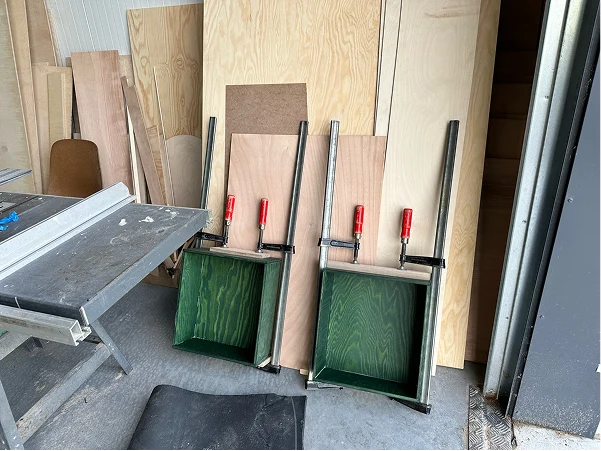

- Sanding and finishing. To protect the surfaces from weathering and UV discoloration, I finished the birch plywood with three coats of lightly white-tinted PU-based varnish. This involved sanding between coats with different grits to achieve a smooth and consistent finish. I mainly used a random orbital sander for the finer work and a belt sander for rougher surface preparation. For the kitchen drawers, I experimented with different levels of green tint saturation before arriving at the final deep forest-green finish.
- Electrical work and fixtures. For the main electrical system, I chose to work with a contractor, while also assisting with parts of the wiring and installation myself. This allowed me to understand the system while making sure the most safety-critical parts were handled professionally. I also installed a range of fixtures and hardware, including drawer runners, power sockets, water taps, rails, and other details that brought the interior from a built structure into a functioning living space.

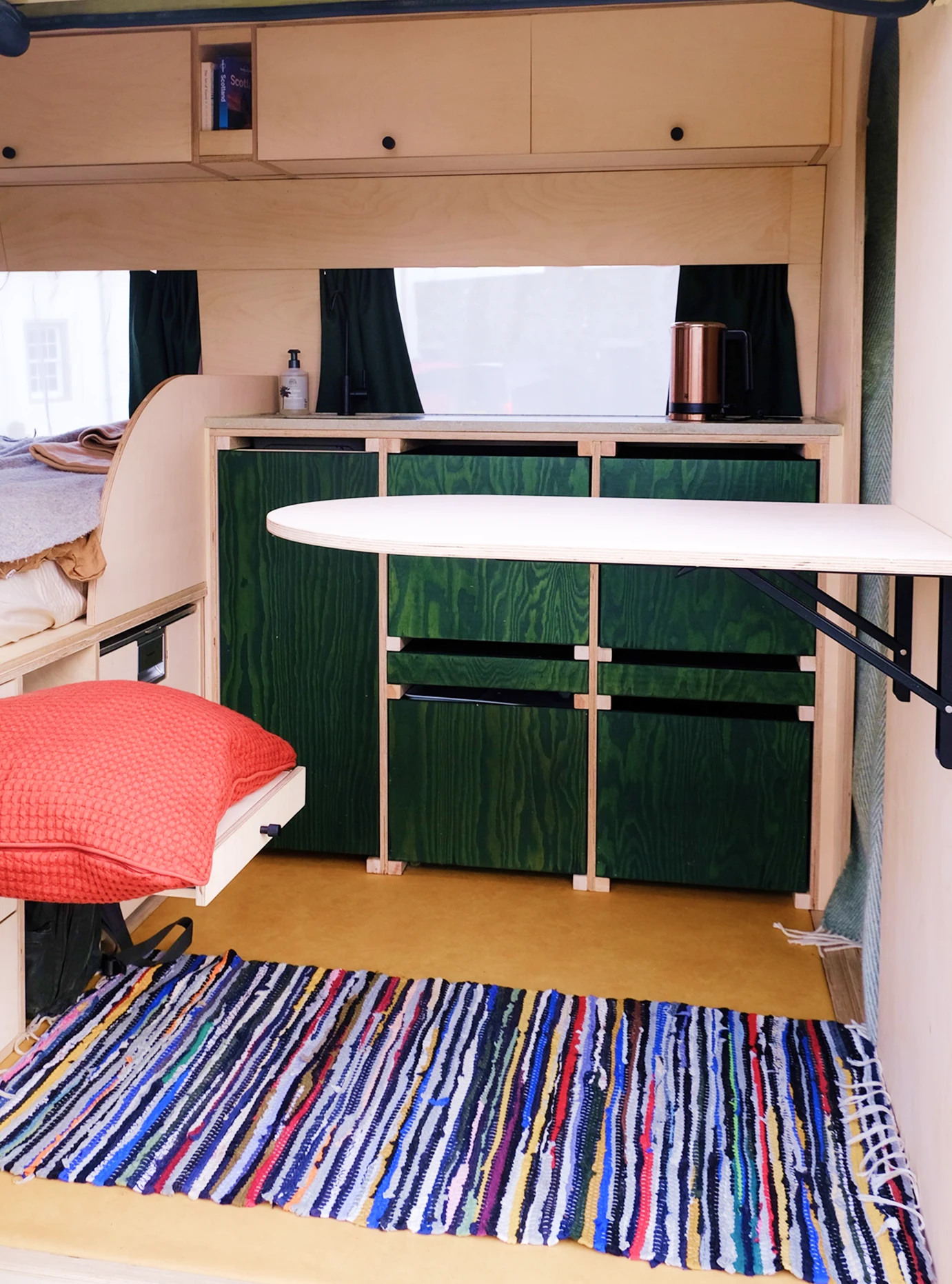

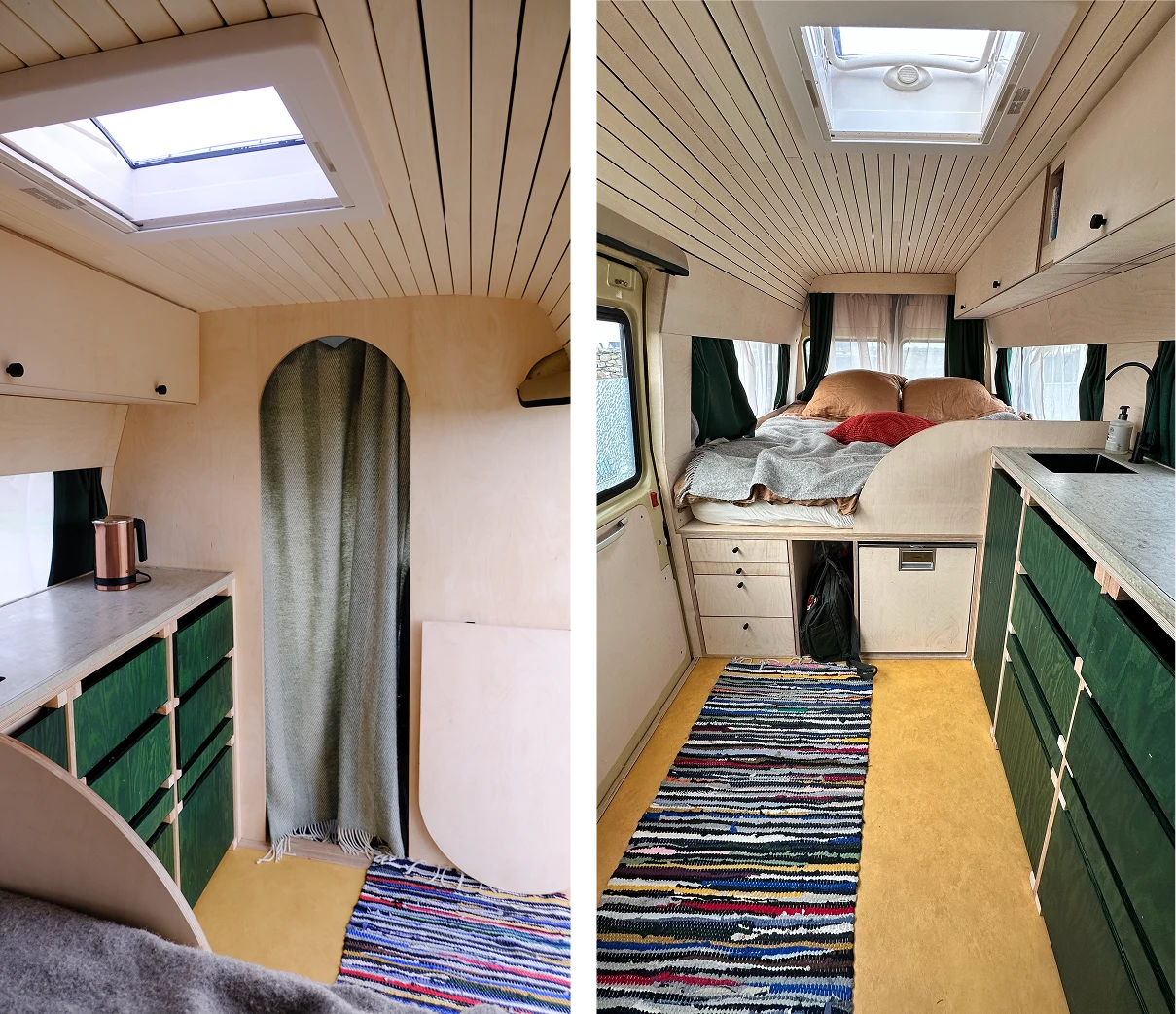

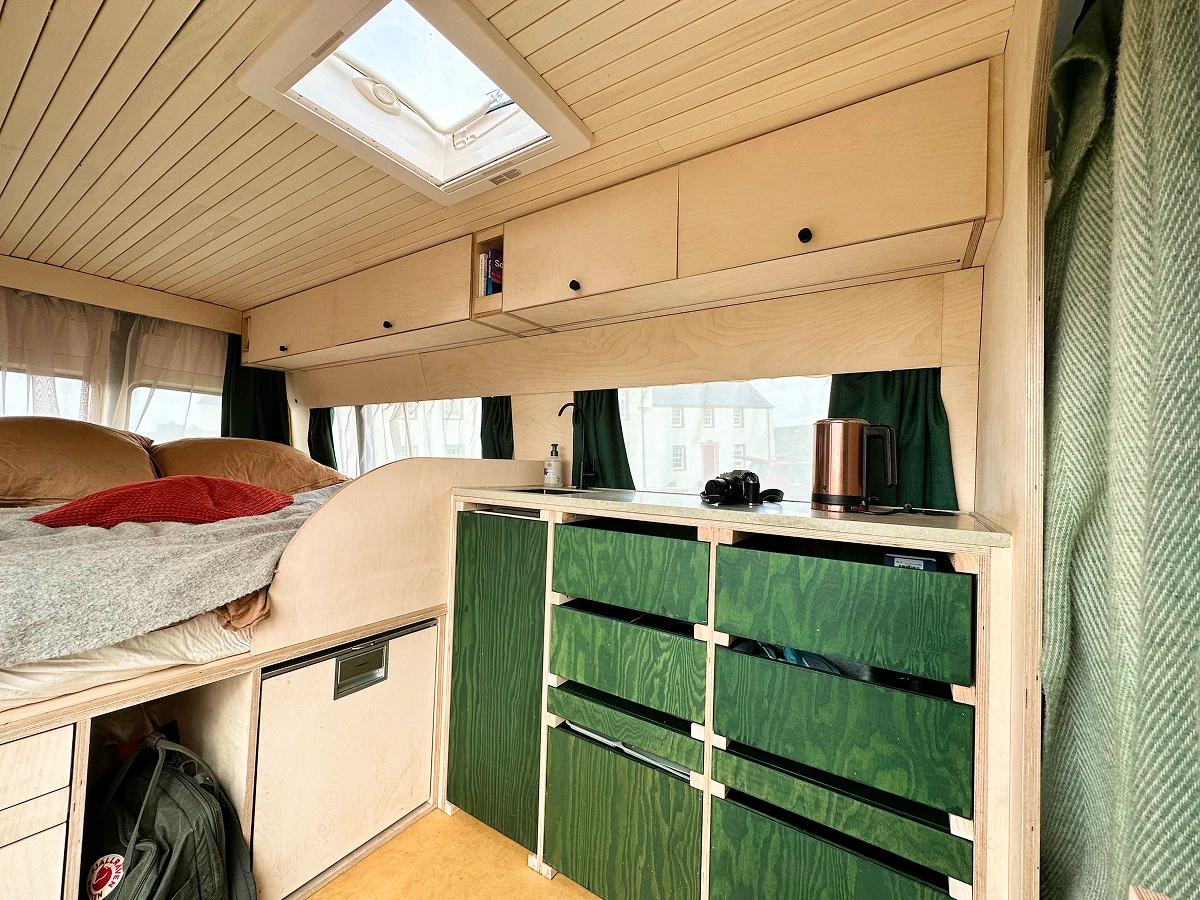

3. Final Result
4. Future Improvements
This project taught me a great deal about the difference between building something that works immediately and designing something for long-term durability, efficiency, and maintainability. If I were approaching the project again today, there are several things I would do differently.
- I would outsource precision cutting and surface preparation where appropriate. Although it was valuable to improve my own cutting, sanding, and finishing skills, the size and setup of my workshop limited how efficiently I could process large sheet materials. For example, because I did not have proper spray-painting facilities or ventilation, all finishing had to be done by hand, which added a significant amount of time. In a future project, I would consider working with a specialist supplier to produce the main building elements from detailed cutting lists ā ideally pre-sanded, and in some cases even pre-finished.
- I would use lighter and more cost-effective materials for hidden structural elements. Using birch plywood throughout the build created a strong and visually consistent interior, but it also added weight and cost. In hindsight, many of the invisible internal components could have been built from lighter and more affordable materials such as spruce, pine, or poplar plywood, while reserving birch plywood for visible surfaces and high-wear areas.
- I would develop a more robust plywood joinery strategy. For this build, I relied mainly on structural design, PVA glue, dowels, nails, screws, and occasional L-brackets. While this worked well initially, several years of use have shown that some joints are affected by vibration, repeated loading, and changes in temperature and humidity. In a future build, I would use more plywood-specific joinery methods ā such as dados, rabbets, locking joints, and more deliberate mechanical fastening ā to improve long-term rigidity and reduce movement in heavily used panels.
- I would plan service access more systematically. In a compact build, every hidden system ā electrical wiring, heating, ventilation, water, storage, and fasteners ā needs to remain accessible after the interior is finished. In a future project, I would design removable access panels and maintenance zones more deliberately from the beginning, so the finished interior remains both clean and easy to repair or upgrade.
